Commercial Parking Stall Layout Standards Explained

A parking lot can have fresh asphalt and crisp paint yet still create daily problems if the spaces, aisles, and accessible routes are laid out poorly. Commercial parking stall layout standards guide far more than the width of an individual space. They affect traffic circulation, pedestrian safety, ADA accessibility, delivery access, parking capacity, and the long-term usability of the property.

For Central Florida property managers and owners, the right layout starts with the approved site plan and applicable local requirements. Striping is not simply repainting what was there before. Older layouts may no longer reflect current accessibility requirements, changed traffic patterns, tenant needs, or the way vehicles use the site today.

What Commercial Parking Stall Layout Standards Cover

Parking stall layout standards are a combination of local zoning and land-development rules, building and fire requirements, accessibility regulations, and practical design considerations. The governing dimensions can vary by municipality, property type, and whether a project is new construction, redevelopment, or routine maintenance.

A striping contractor should review the existing layout before work begins, especially when restriping follows resurfacing, sealcoating, site modifications, or a change in property use. The original stall count may not be the best starting point if vehicles are regularly overhanging sidewalks, backing into traffic, or blocking accessible paths.

Most commercial layouts address several connected elements: standard stall width and length, aisle width, parking angle, accessible spaces and access aisles, directional arrows, fire lanes, loading areas, crosswalks, curb markings, and pedestrian routes. A decision that improves one area can affect another. For example, narrower stalls may increase the total count, but they can also make door clearance, maneuvering, and customer experience worse.

Stall Size Depends on the Parking Angle

Standard parking spaces are commonly designed around a width near 9 feet and a length near 18 feet, but there is no single dimension that applies to every Florida commercial property. Local codes and approved plans control. Some properties use 8.5-foot or 9.5-foot stalls. Medical facilities, apartment communities, and higher-end retail sites may benefit from more generous dimensions because of longer dwell times, passenger loading, carts, or frequent use by larger vehicles.

Parking angle is just as important as the stall size. A 90-degree layout generally provides the highest parking density but needs wider aisles for two-way movement and requires more backing maneuver room. It is often appropriate for shopping centers, office complexes, and apartment communities where space is available and traffic can be organized clearly.

Angled parking can work well where one-way circulation is practical. A 60-degree layout is easier for drivers to enter and exit, while 45-degree parking can reduce the required aisle width further. The trade-off is fewer stalls along the same curb line or parking bay. On sites with constrained geometry, the best layout is not always the one that produces the largest theoretical stall count. It is the one drivers can use safely without repeated conflicts.

Aisle Width Is a Safety Issue

Drive aisle dimensions must match both the parking angle and the direction of travel. Two-way 90-degree parking typically requires a wider aisle than one-way angled parking. If an aisle is too narrow, drivers must make repeated multi-point turns, vehicles cross into opposing lanes, and minor collisions become more likely.

This is especially relevant at retail plazas and medical offices, where peak traffic includes pickups, SUVs, delivery vehicles, and visitors unfamiliar with the property. At warehouses and industrial facilities, passenger parking should also be separated from truck routes wherever feasible. Passenger vehicle striping cannot solve a circulation problem created by conflicting truck traffic.

Clear directional arrows, stop bars, and crosswalk markings help drivers understand the intended flow. They are most effective when the pavement layout supports that direction. Arrows will not correct an aisle that is too narrow or a parking bay that forces vehicles into conflicting movements.

ADA Parking Requires More Than Blue Paint

Accessible parking is one of the most critical parts of a commercial parking layout. Under federal accessibility requirements, the required number of accessible spaces is based on the total number of spaces in the lot or parking facility. At least one of the required accessible spaces must generally be van accessible. State and local requirements may add details, and sites should be evaluated against the applicable rules rather than relying on a prior striping pattern.

An accessible space needs the proper width, a marked access aisle, compliant signage, and a continuous accessible route to the building entrance or destination. The access aisle is not extra parking area. It must remain clear so a person can safely enter or exit a vehicle, including a vehicle with a ramp or lift.

The accessible route matters as much as the space itself. A correctly painted ADA stall is not useful if the route crosses broken pavement, drains into standing water, ends at a curb without a compliant ramp, or requires a person to travel behind parked vehicles. In Florida, ponding water and pavement settlement can make these issues more noticeable over time.

Property owners should also consider the practical location of accessible parking. The closest spaces are not always the best spaces if the path to the entrance is unsafe or interrupted. A site evaluation can identify whether restriping alone is appropriate or whether curb ramps, drainage improvements, asphalt repair, or concrete work should be addressed first.

Fire Lanes, Loading Areas, and No-Parking Zones

Parking capacity must never interfere with emergency access or daily operations. Fire lanes need to remain open, clearly marked, and coordinated with local fire authority requirements. The exact wording, color, curb treatment, and sign placement can vary by jurisdiction and property approval conditions.

Loading zones, dumpster approaches, truck turn paths, drive-through lanes, and service entrances also need defined no-parking areas. These locations are often lost over time when faded markings are repainted inconsistently or when tenants begin using open pavement as informal parking. A few added stalls may appear beneficial until a delivery truck blocks a travel lane, damages curbing, or cannot access the service area.

At multifamily properties, visitor parking and resident parking need enough definition to support enforcement. At retail and medical properties, short-term pickup or loading spaces may improve traffic flow more than squeezing in one additional standard stall. The right answer depends on how the property operates during its busiest hours.

Restriping After Sealcoating or Asphalt Repairs

Sealcoating and resurfacing create an opportunity to correct layout issues that have been carried forward for years. Before striping begins, confirm the number and location of stalls, ADA spaces, fire lanes, arrows, stop bars, crosswalks, and reserved areas. This avoids last-minute changes after paint has been applied.

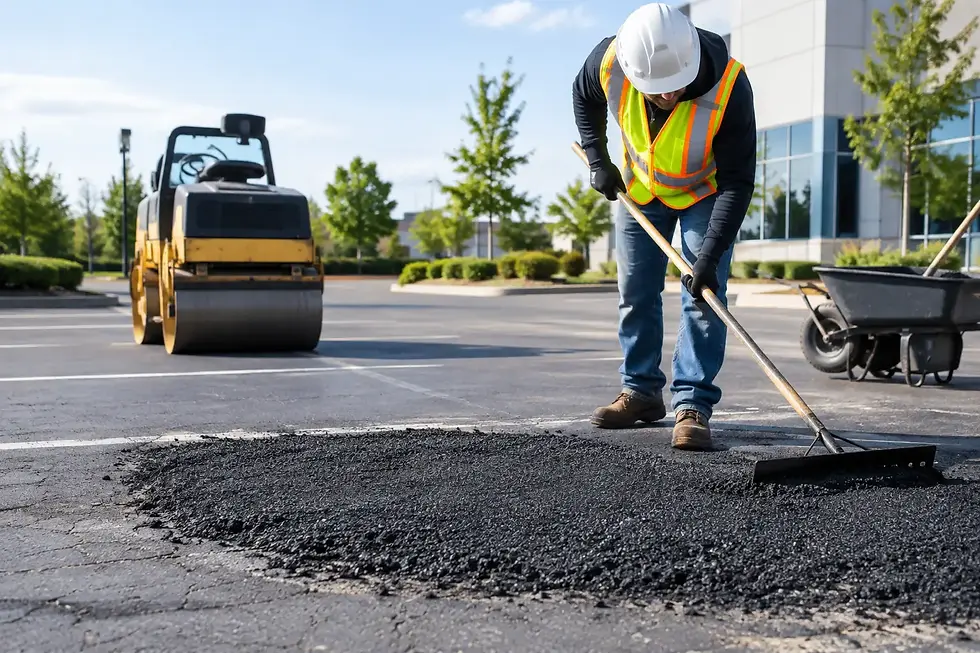

A professional scope should account for pavement condition as well. Cracks, alligator cracking, low areas, failed edges, and potholes should be repaired before final markings are placed. Painting over damaged asphalt may improve appearance temporarily, but it does not provide a durable parking surface or a reliable accessible route.

For larger properties, phased work can keep entrances, tenant access, and critical parking areas available. Dependable scheduling and a clear traffic-control plan matter as much as the finished striping when a shopping center, medical office, school, or industrial facility must stay operational.

A Practical Review Before You Approve Striping

Before approving a new layout or restriping plan, walk the property during a busy period if possible. Look for vehicles parked over lines, recurring congestion near entrances, delivery conflicts, faded fire lanes, blocked curb ramps, and areas where pedestrians walk through traffic because no marked crossing exists.

Also compare the field conditions with the approved plan and confirm which code requirements apply to the project. Routine maintenance may not trigger the same review as a redevelopment project, but accessibility and safety issues should not be ignored simply because the work is described as restriping. When the site has changed, the striping plan may need to change with it.

Specialty Parking Lot Services LLC evaluates commercial parking areas with the full pavement system in mind, including asphalt condition, drainage concerns, accessibility markings, traffic flow, and the scope needed for a durable result. Property managers and owners in Central Florida can request a free estimate or schedule a property evaluation before maintenance work locks an outdated layout back into place.

A well-planned lot makes parking feel routine, which is exactly the point. When stalls, aisles, accessible routes, and operational markings work together, the property is safer to use, easier to manage, and better prepared for the next phase of maintenance.
